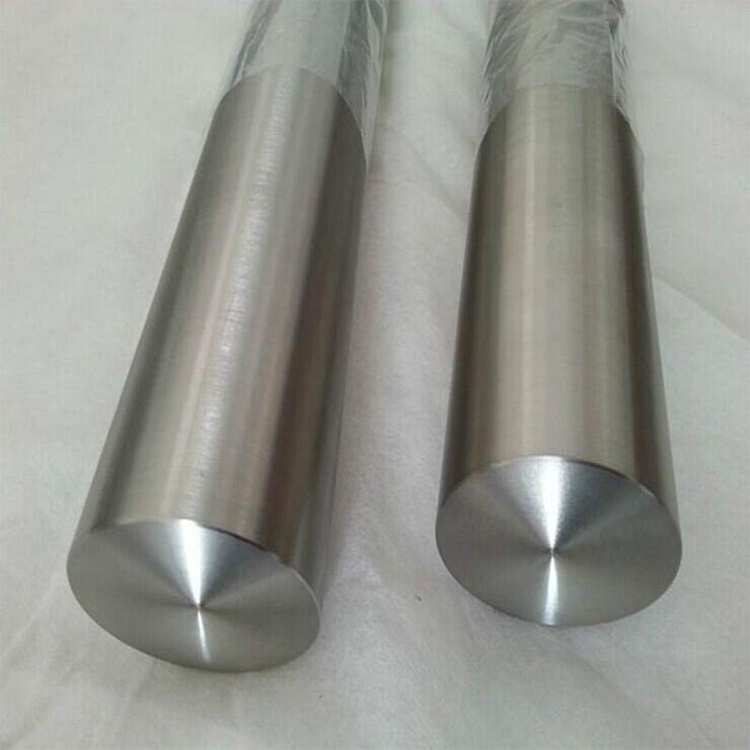

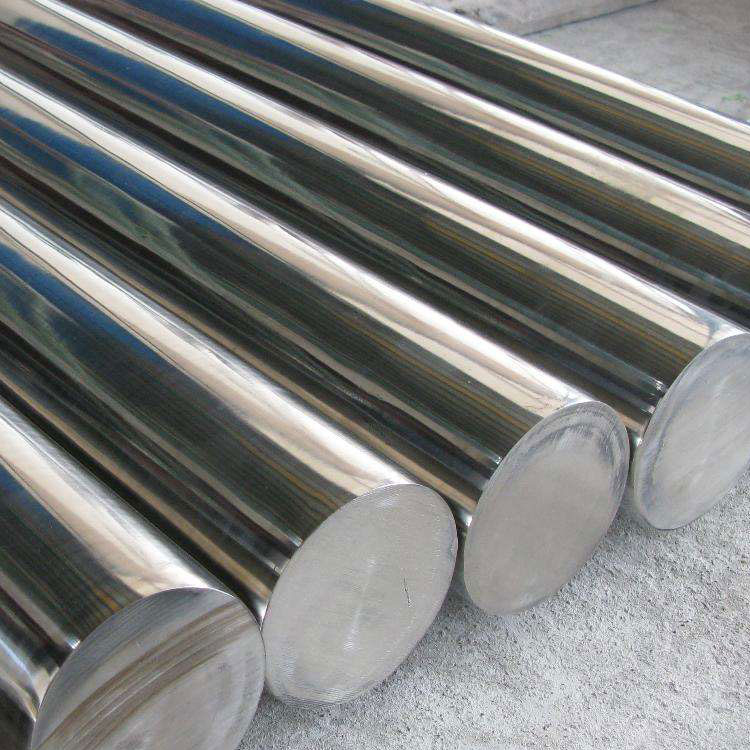

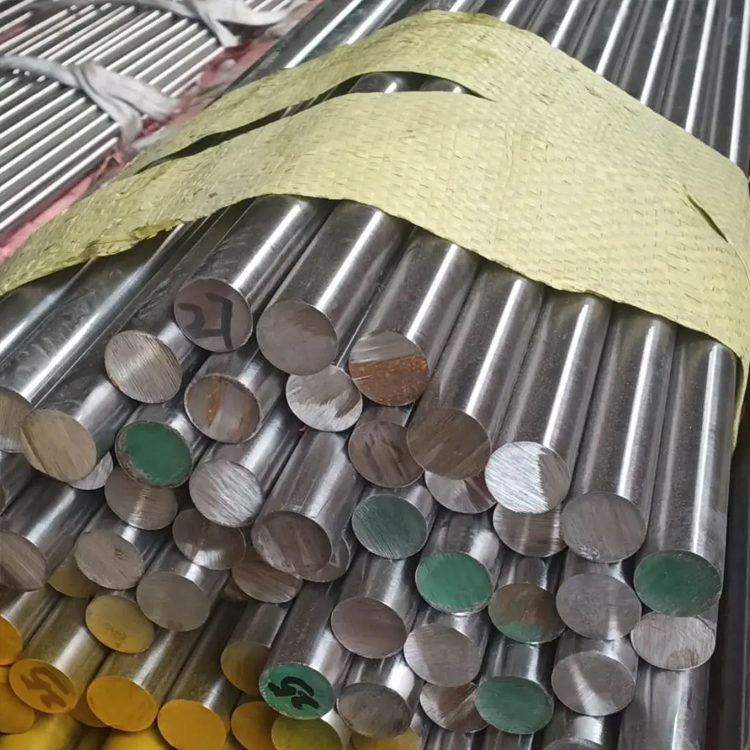

304 Stainless Steel Bar
Stainless Steel Bar is one type of a product made in the stainless steel materials. There are different grades of stainless steels used in various industries. Stainless steel bars are used for their strength and corrosion resistance properties. All stainless steels contain chromium. The composition can vary and the chromium content varies as well. The more the chromium content, the high the corrosion resistance is.

Payment Term:T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation:By sea or Land transportation

CONTACT US

PRODUCT DETAILS


304 Stainless Steel Bar Rod manufacturer



Stainless Steel 304 Round Bar is made up of a stainless material that has 18% chromium and 8% nickel in its composition. The material has corrosion resistance and strength properties.  Navstar Steel is one of the leading manufacturers and suppliers of the Stainless Steel 304 Round Bar products. The material is strong with 515MPa minimum tensile strength and 205MPa minimum yield strength. It also can operate under high temperatures.



304 Stainless Steel Bar Rod Price in China ,Manufacturer of 304 Stainless Steel Bar Rod



The higher operating temperatures for ASTM A276 Type 304 Rod are possible because of the high melting point of 1400 degrees Celsius of the material. The bars are made in different models, specifications and types such as the ASTM A479 GR 304 Bright Bar and SS 304 Round Bar. The A479 is a specification that covers bars of hot rolled, cold drawn and pressure vessel bars. The pressure vessel specification mandates the SS UNS S30400 Hot Rolled Bar to be able to handle high pressures. The material can come in varying dimensions.


The 304 Stainless Steel  Bar is used mostly for its high geometrical strength. The applications include construction and other commercial applications as well. The strength, heat resistance and corrosion resistance are all the result of the composition. The material includes carbon, manganese, phosphorus, silicon, sulfur and chromium and nickel. Please contact us for more information on the SS 304  Bar and other types as well as their pricing.



Equivalent Material of 304 Stainless Steel Bar Rod



GradeUNS No.Old BritishEuronormChina GBJapanese JIS
BSENNo.Name
304S30400304S1558E1.4301X5CrNi18-100Cr18Ni9SUS304
304LS30403304S12-1.4307X2CrNiN18-900Cr19Ni10SUS304L
304HS30409304S51-1.4948X6CrNi18-1107Cr19Ni10SUS304H



Standard Specification Of ASTM A240 Type 304 Stainless Steel Bar Rod



SpecificationsASTM A276
Diameter3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc
Length2000mm, 2500mm, 3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc
SurfaceBlack 、 bright、 pickling 、etc
FinishHot rolled plate (HR), Cold rolled sheet (CR),
FormRod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.



304 Stainless Steel Bar Rod Composition and Mechanical Characteristics



GradeCMnSiPSCrMoNiN
304Min.
Max.
/
0.08
/
2.0
/
0.75
/
0.045
/
0.030
18.00
20.00
/8.00
10.50
/
0.10
304LMin.
Max.
/
0.03
/
2.0
/
1.0
/
0.045
/
0.030
18.00
20.00
/9.00
11.00
/
304HMin.
Max.
0.04
0.10
/
2.0
/
0.75
0.045
/
/
0.030
18.00
20.00
/8.00
10.50
/



GradeTensile Strength
(MPa)
Yield Strength
0.2% Proof (MPa)
Elongation
(% in 50mm)
Hardness
Rockwell B
(HR B)
Brinell
(HB)
3045152054092201
304L5152054090187
304H5152054092201



Common Types Of 304 Stainless Steel Bar Rod

Dimensions Standard,weight chart and size schedules of 304 Stainless Steel Bar Rod



SS 304 rod DiameterWeight chart per meterSS 304 rod DiameterWeight chart per meter
3mm0.06 Kg1/8''0.06 kg
4mm0.10 Kg3/16''0.14 kg
5mm0.16 Kg1/4''0.25 kg
6mm0.22 Kg5/16''0.39 kg
7mm0.30 Kg3/8''0.56 kg
8mm0.40 Kg7/16''0.77 kg
10mm0.62 Kg1/2''1.00 kg
12mm0.89 Kg9/16''1.22 kg
14mm1.22 Kg5/8''1.56 kg
15mm1.40 Kg11/16''1.89 kg
16mm1.59 Kg3/4''2.25 kg
18mm2.01 Kg7/8''3.07 kg
20mm2.48 Kg1''4.03 kg
22mm3.00 Kg

24mm3.57 Kg

25mm3.88 Kg
