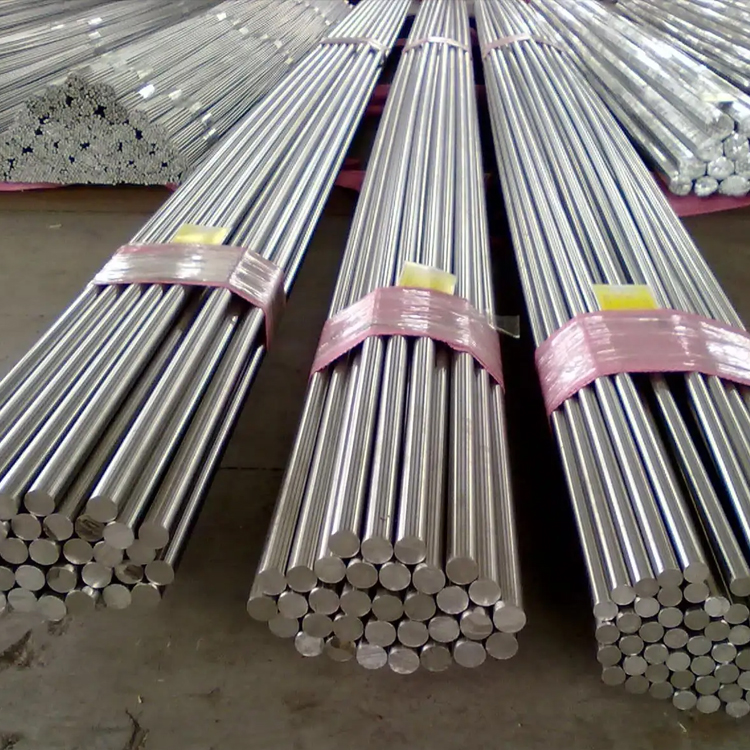

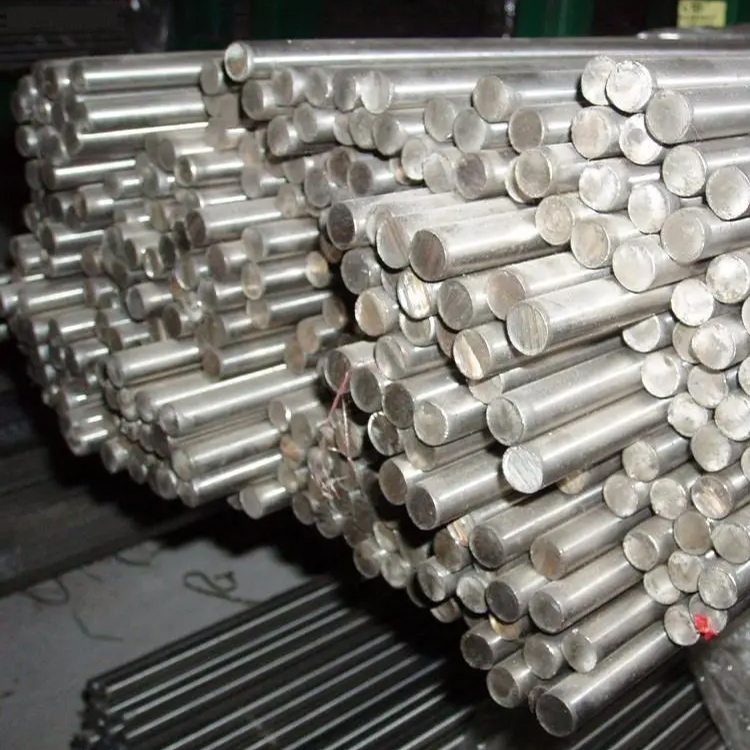

904L Stainless Steel Bar
Stainless Steel Bar is one type of a product made in the stainless steel materials. There are different grades of stainless steels used in various industries. Stainless steel bars are used for their strength and corrosion resistance properties. All stainless steels contain chromium. The composition can vary and the chromium content varies as well. The more the chromium content, the high the corrosion resistance is.

Payment Term：T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation：By sea or Land transportation

CONTACT US

PRODUCT DETAILS

904L Stainless Steel Bar Rod manufacturer



Grade 904L stainless steel is a non-stabilized austenitic stainless steel with low carbon content. This high alloy stainless steel is added with copper to improve its resistance to strong reducing acids, such as sulphuric acid. The steel is also resistant to stress corrosion cracking and crevice corrosion. Grade 904L is non-magnetic, and offers excellent formability, toughness and weldability.



904L Stainless Steel Bar Rod Price in China ,Manufacturer of 904L Stainless Steel Bar Rod



Grade 904L contains high amounts of expensive ingredients, such as molybdenum and nickel. Today, most of the applications that employ grade 904L are replaced by low-cost duplex stainless steel 2205.

The table below provides the compositional ranges of grade 904L stainless steels:



Equivalent Material of 904L Stainless Steel Bar Rod



GradeUNS No.Old BritishEuronormChina GBJapanese JIS
BSENNo.Name
904LN08904904S13 -1.4539X1NiCrMoCuN25-20-500Cr20Ni25Mo4.5Cu SUS 904L



Standard Specification Of ASTM A240 Type 904L Stainless Steel Bar Rod



SpecificationsASTM A276
Diameter3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc
Length2000mm, 2500mm, 3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc
SurfaceBlack 、 bright、 pickling 、etc
FinishHot rolled plate (HR), Cold rolled sheet (CR),
FormRod, Round, Channel Bar, Rings, Round Rod, Triangle, Hollow, Rectangle, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.



904L Stainless Steel Bar Rod  Composition and Mechanical Characteristics



GradeCMnSiPSCrMoNiN
904LMin.
Max.		/
0.02		/
2.00		/
1.00		/
0.045		/
0.035		19.00
23.00		4.00
5.00		23.00
28.00		/



GradeTensile Strength
(MPa) 		Yield Strength
0.2% Proof (MPa) 		Elongation
(% in 50mm)		Hardness
Rockwell B
(HR B)		Brinell
(HB)
904L4902203678150



Dimensions Standard,weight chart and size schedules of 904L Stainless Steel Bar Rod



SS 904L rod DiameterWeight chart per meterSS 904L rod DiameterWeight chart per meter
3mm0.06 Kg1/8''0.06 kg
4mm0.10 Kg3/16''0.14 kg
5mm0.16 Kg1/4''0.25 kg
6mm0.22 Kg5/16''0.39 kg
7mm0.30 Kg3/8''0.56 kg
8mm0.40 Kg7/16''0.77 kg
10mm0.62 Kg1/2''1.00 kg
12mm0.89 Kg9/16''1.22 kg
14mm1.22 Kg5/8''1.56 kg
15mm1.40 Kg11/16''1.89 kg
16mm1.59 Kg3/4''2.25 kg
18mm2.01 Kg7/8''3.07 kg
20mm2.48 Kg1''4.03 kg
22mm3.00 Kg

24mm3.57 Kg

25mm3.88 Kg
